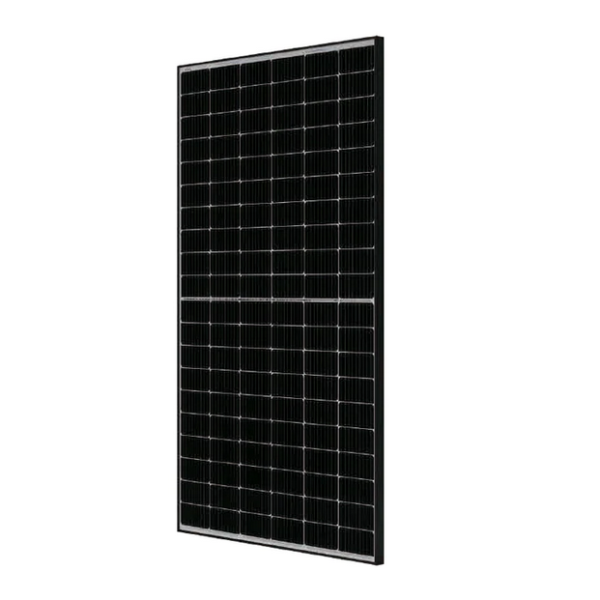

JA Solar 385W Mono Percium Half-Cell Solar Panel – Black Frame

Description

Features and Benefits

• Higher output power.
• Better mechanical loading tolerance.
• Lower LCOE.
• Less shading and lower resistive loss.
• 12-year product warranty.
• 25-year linear power output warranty.

Specifications

• Cell: Mono.
• Weight: 20.7kg±3%.
• Dimensions: 1776±2mm×1052±2mm×35±1mm.
• Cable Cross Section Size: 4mm².
• No. of cells: 120(6×20）.
• Junction Box: IP68, 3 diodes.
• Connector: MC4 Original.
• Cable Length: (Including Connector) 1000mm (+)/1000mm (-).

Electrical Parameters at STC

• Type: JAM60S20-385/MR.
• Rated Maximum Power (Pmax) [W]: 385.
• Open Circuit Voltage (Voc) [V]: 41.78.
• Maximum Power Voltage (Vmp) [V]: 35.04.
• Short Circuit Current (Isc) [A]: 11.53.
• Maximum Power Current (Imp) [A] 10.99.
• Module Efficiency [%]: 20.6.
• Power Tolerance: 0~+5W.
• Temperature Coefficient of Isc(α_Isc): +0.060%/℃.
• Temperature Coefficient of Voc(β_Voc): -0.300%/℃
• Temperature Coefficient of Pmax(γ_Pmp): -0.370%/℃
• STC: Irradiance 1000W/m², cell temperature 25℃, AM1.5G.
