Description
Features
- Lower internal current, lower hot spot temperature.
- Cell crack risk limited to smaller area of the cell.
- Innovative symmetrical module design means better shading tolerance.
- Heavy snow loads up to 5400Pa and increased wind load up to 3600Pa.
- Product Warranty: 12 years.
- Performance Warranty: 25 years.
Specifications
Electrical Data | Stc*

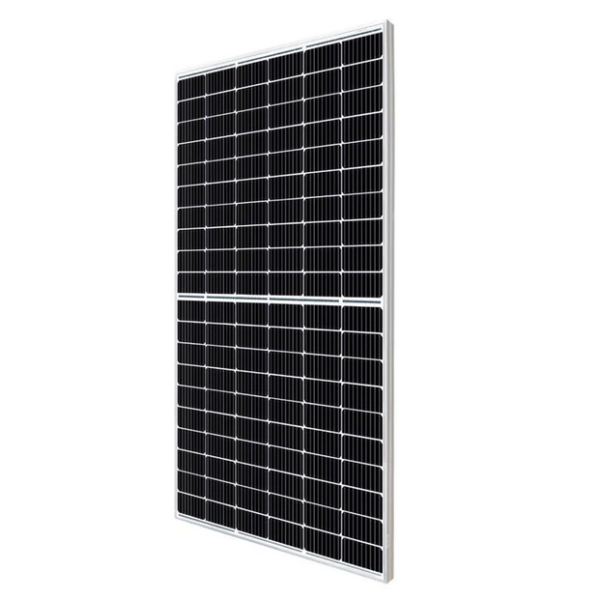

- Model: CS6W-535MS.
- Nominal Max. Power (Pmax): 535 W.
- Opt. Operating Voltage (Vmp): 41.1 V.
- Opt. Operating Current (Imp): 13.02 A.
- Open Circuit Voltage (Voc): 49.0 V.
- Short Circuit Current (Isc): 13.85 A.
- Module Efficiency: 20.6%.
- Operating Temperature ;-40°C ~ +85°C.
- Max. System Voltage: 1500V (IEC/UL) or 1000V (IEC/UL).
- Module Fire Performance: TYPE 1 (UL 61730 1500V) or TYPE 2 (UL 61730 1000V) or CLASS C (IEC 61730).
- Max. Series Fuse Rating: 20 A.
- Application Classification: Class A Power Tolerance.
* Under Standard Test Conditions (STC) of irradiance of 1000 W/m2, spectrum AM 1.5 and cell temperature of 25°C.
Mechanical Data
- Cell Type: Mono-crystalline.
- Cell Arrangement: 120 [2 x (10 x 6)].
- Dimensions: 2261 mm x 1134 mm x 35 mm.
- Weight 27.8 kg.
- Front Cover: 3.2 mm tempered glass.
- Frame: Anodized aluminium alloy.
- J-Box: IP68, 3 bypass diodes.
- Cable: 4.0 mm² (IEC), 12 AWG (UL).
