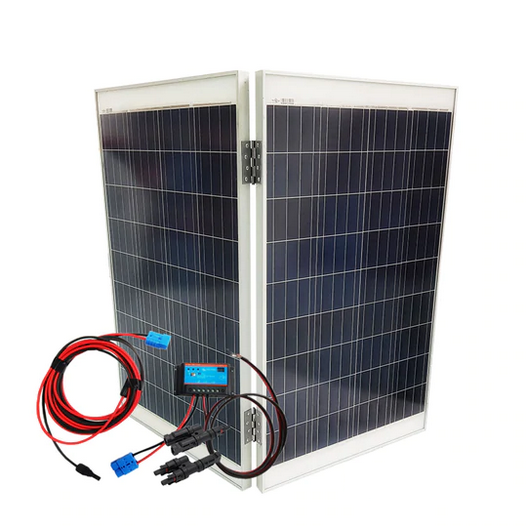

200W Foldable-Portable Solar Charger

Description

Kit Contents

• High performance polycrystalline solar cells.
• Adjustable support legs – to change inclination of the solar panels for direct sun exposure.
• Sturdy aluminium frame, tempered glass, with polymer protection corners.
• 6m of 4mm Solar cable with Anderson plug (50A) and 1m of 4mm ripcord with eyelets .
• 1 x MC4 Branch connector pack for neat parallel and series panel connections.
• Rip stop durable carry case with internal foam padding for extra panel protection.
• IP20 rated Victron PWM charge controller: 20A (Upgrade to MPPT options before Checkout).

Kit Specifications

• Solar Panels: 2 x 100W.
• Folded Dimensions: 1116mm x 660mm x 80mm +/-2mm.
• Weight: 22kg.
• Max-power: 200W.
• Open circuit voltage, Voe (V) – 21.92V.
• Voltage at Maximum power, Vmp (V) – 17.92V
• Current a t Maximum power, Imp (A) – 2 x 5.59A.
• Short-circuit Current: 2 x 5.95A.

Charge Controller Options

• 1 x Victron Blue Solar Light 12V/24V/20A PWM Charge Controller (Standard).
• 1 x Victron Blue Solar 100V/30A MPPT Charge Controller(Upgrade).
